- CNC Multi Spindle
- Gildemeister
- GM-67 CNC
- Multi Spindle Bar
- 67mm
- 2000
- Spindle Size: 67mm
- Dual Turrets:
Specifications
Machine basic datasCNC multi-spindle turning center for bar work
Manufacturer Gital
Year of manufacturing 2000
within tolerance and working
Control
Name Sinumerik 840C
Manufacturer Siemens
Kind/Type CNC control
Detail description
Technical details

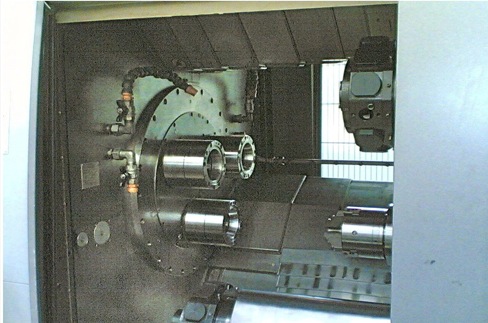

Drum
Number of spindles 3
Spindle bore max. 65 mm
Distance between centers of spindles 369,5 mm
Power of the spindles at 100% duty cycle 9 kW
Power of the spindles at 40% duty cycle 13,5 kW
Spindle speed -3000 rpm
Miscellaneous
Colour
Floor space/Weight
Dimensions (L x W x H) 9,25 x 1,94 x 2,53 m
Weight approx. 20000 Kg
Equipment
Chip conveyor
Counter spindle
Clamping chuck diameter max.: 175 mm
Torque (100%ED):114 Nm
Torque (40%ED): 172 Nm
Spindle speed: -3000 U/min
Longitudinal stroke: 920 mm
Rapid traverse Z-Axis: 20 m/min
Compound slide
Transverse travel X1 und X2: 155 mm
Transverse travel X3: 180 mm
Transverse travel Z1 und Z2: 565 mm
Transverse travel Z3: 580 mm
Rapid traverse X-Axis Slide 1, 2, 3: 15 m/min
Rapid traverse Z-Axis Slide 1, 2, 3: 20 m/min
5, make R"ohm,
incl. connecting elements
Notes
Front slide
Quantity: 2
Radial stroke X: 110 mm
Longitudinal stroke Z: 565 mm
Rapid traverse X: 15 m/min
Rapid traverse Z: 20 m/min
Turret mounted on compound slide
Number of tool stations: 12
Shank diametre according to DIN 69880: 30 mm
Tool holder mounted on front slide
Number of tool stations: 2
Shank diametre according to DIN 69880: 30 mm
Tool carrier w. index. turret f. slide pos. 1
Tool carrier with hydraulic indexing turret
for front slide position 1 with 2 toolholders VDI 30
instead of tool carrier
Tool carrier w. index. turret f. slide pos. 2
Addt'l cost for frontal slide with
2 pos. revolver with VDI 30 holder
in pos.2
Drive for rotating tools, turret 1
Drive for revolver pos.1
drive capacity 4 KW by
power rate 5000 rpm
max. speed: 6000 rpm
max driven tools: 12
Drive for rotating tools, turret 2
Drive for revolver pos.2
drive capacity 4 KW by
power rate 5000 rpm
max. speed: 6000 rpm
max driven tools: 12
Drive for rotating tools, turret 3
Drive for revolver pos.3
drive capacity 4 KW by
power rate 5000 rpm
max. speed: 6000 rpm
max driven tools: 12
Spindle rinsing through counter spindle
Counter spindle chuck cleaning device
Bar holder for bar with length 4000 mm
Bar holder for bar with length 4000mm
Including 1 set of guide bushes and
1 set of reduction-tubes for spindles
min. diam.: 25mm
max. diam.: 70mm
(excl. hexag. bars)
Work piece pick-off equipm. pneum. contr.
Pneumatic driven workpiece
unloading system complete with
conveyor belt
Collet type Hainbuch, application
3-jaw chuck KFD-HS 175, R"ohm
3-jaw power clamping chuck with
through-hole, type KFD-HS 17
