Nakamura Super NTY3 Lathe - CNC 2.5

Specifications

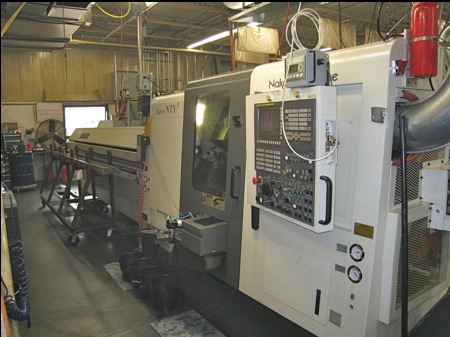

Used Nakamura Tome Super Nty3 Cnc Turning Center
New 2008
Specifications:
Travel: X Axis:................ 5.314"
Y Axis:................ 2.440"
Z Axis:................ 22.7"
Turning Diameters:............. 7.4"
Turning Lengths:............... 23.5"
Maximum Swing:................. 32.2"
Chuck Diameter:................ 6"
Bar Capacity:.................. 1.65"
Spindle Speed:................. 6000 Rpm
Drive Motor (Hp):.............. 7.5 - 15 Hp
Spindle Nose:.................. a2-5
L Spindle Motor:............... 15 / 11Kw
R Spindle Motor:............... 11 / 7.5Kw
Max. Number of Tools Turning:.. 36
(3)Max. Number of Tools Rotary:..12 Lower
Machine Dimensions (Lxhxw):.... 154.72" X 91.3" X 83.26"

Notes

Equipped With:
Fanuc 31I-A Control
High Pressure Coolant Pump for Each Turret (300 Psi)
Coolant Thru Subspindle
Programmable Parts Catcher
Turbo Chip Conveyor
(2) Ats a53Jtl Collet Noses
Kitagawa 6" 3-Jaw Chuck
(8) Er20 Cross Drill Units
(5) Er20 Face Mill Units
Additional M-Codes (Five Pairs)
Nt Nurse
Nt Navigator
Bar Feed Interface
Breuning Irco Magazine Bar Feeder
