  • CNC Machine
  • Nakamura
  • WT-300 MMY
  • Lathe - CNC
  • 2.55"
  • 2008
  • C Axis:
  • Y Axis:
  • Dual Spindles:
  • Live Tooling:

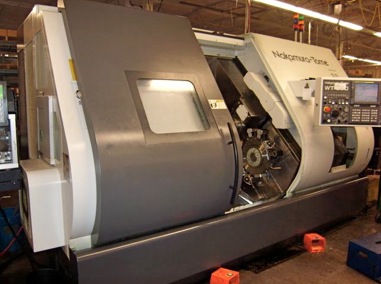

Nakamura WT-300 MMY Lathe - CNC 2.55

Specifications

Used Nakamura-Tome Wt-300 Mmy-G Multi-Axis Cnc Turning
and Milling Center New-2008
Capacity
Max Turning Diameter: 10.63"
Distance Between Spindle: 43.31"
Max Turning Length: 30.71"
Bar Capacity L/R: 2.55"
L, R-Spindle
Spindle Speed: 4500 Rpm
Spindle Nose: a2-6
L Spindle Motor: 7.5 Hp
R Spindle Motor: 7.5 Hp
Rotating Tool / Turret Head:
Rotating Tool Speed: 3600 Rpm
Tool Stations (Rotating Tool): 24 (12St X 2)
Rotating Tool Spindle Motor: 5.5 / 3.7Kw X 2
Rotary System: Individual Rotation
Slide Travel:
X1 / X2-Axis: 7.7" / 7.7"
Z1 / Z2-Axis: 30.7" / 30.7"
Y-Axis Upper Turret: 4.7 (+/-2.3)"
General Dimensions (W X L X H): 147" X 101" X 89"
Fanuc 18I-Tb Cnc Control
Lns Quickload Servo Barfeeder (12Mm & 25Mm Pushers)
2.0" & 1.75" Spindle Liners
Y-Axis Upper Turret
C-Axis Both Spindles
Milling for Upper and Lower Turrets (7.5 Hp Upper & Lower)
2.55" Main and Sub Spindle Bar Cap
Nt Nurse
Luck Bei Ii
Nt Work Navigator
Parts Catcher Type G (Gantry)
Part Exit Conveyor
Chip Conveyor, Varispeed W/ Air Header Assembly
High Pressure Coolant Pumps (Upper & Lower)
Kitagawa 8" 3 Jaw Chuck (Rt Spindle)
Collet Chucks (Left & Right Spindle)
Fixed Type Air Blow
Helical Interpolation
(2) Er32 Kr2310 Cross Drill Holders
(2) Er32 Kr2313 Face Drill Holders
Thpnak Tool Holder Package
Power on Hours - 4,600
Operating Hours - 2,100
Cutting Hours - 810

Extra Clean Machine - Runs Oil Only
