Daewoo Doosan 2000 SY Lathe - CNC 2005

Specifications

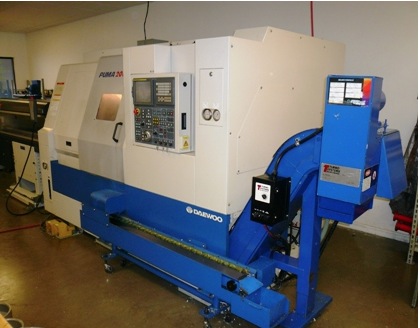

Daewoo Puma 2000SY CNC Turning Center
New 2005

General Specifications As Per Brochure
CNC Control: Fanuc 18i-TB
Capacity:
Swing Over Bed: 23.6"
Swing Over Carriage: 21.6"
Max. Bar Capacity: 2.625"
Max. Turning Diameter (main spindle): 13"
Max. Turning Length: 20.1"
Distance between main & sub-spindle: 33.8"
Main Spindle:
Spindle Speed: 45 - 5,000 RPM
Spindle Nose: ASA A2-6
Draw Tube ID: 2.677"
Spindle Bore Diameter: 2.99"
AC High Torque Spindle Motor: 30HP
Max. Spindle Torque: 351 ft-lbs
Main Spindle C-Axis:
Min. Programmable Angle: .001 degrees
Rapid Traverse Rate: 200 RPM
Repeatability: +/- .006 degrees
Positioning Accuracy: .0167 degrees
Y-Axis:
Travel: 3.94"
Rapid Traverse Rate: 295 IPM
Repeatability: .00012"
Bed,Saddle,Cross Slide:
Travel (X/Z-Axis): 9.8"/22.8"
Angle of Slant Bed: 30 degrees
Guideway Span (X/Z-Axis): 8.9"/14.2"
Rapid Traverse Rate (X/Z-Axis): 790/945 IPM
Ball Screw Diameter (X/Z-Axis): 1.3"/1.3"
Max. X-Axis Feed Thrust: 2,020 lbs
Max. Z-Axis Feed Thrust: 2,430 lbs
X-Axis Repeatability: +/- 0.00006"
Z-Axis Repeatability: +/- 0.00008"
Turret:
# of Tools: 12
Tool Holder Type: BMT 55
Turning Tool Shank Size: 1"
Boring Bar Diameter (main spindle): 1.5"
Boring Bar Diameter (sub-spindle): .75"
Turret Index Time (next station): 0.1 seconds
Tool Selection: Bi-Directional
Turret Index Repeatability: +/- .0005 degrees
Rotating Tools:
RPM: 50 - 5,000 RPM
Spindle Motor (15 min ratings): 7.5 HP
Torque: 17.4 ft-lbs
Collet Type: ER25
Collet Capacity: 1/16" - 5/8"
Sub-Spindle:
B-Axis Travel: 22.8"
Guideway Span: 9.8"
Speed: 60 - 6,000 RPM
Motor: 10 HP
Max. Torque: 34.7 ft-lbs
Spindle Nose: A2 #5
Spindle Bore: 1.77"
Draw Tube ID: 1.38"
Rapid Traverse Rate: 787 IPM
Min. Programmable Angle: .001 Degree (Full C-Axis)
Coolant System:
Pump Pressure: 65 PSI
Pump Motor: 1.2 HP
Tank Capacity: 39 Gallons
Hydraulic Tank Capacity: 2.6 Gallons
Voltage: 205 - 235 Volt/3 Phase
Power Requirement: 51KVA (134 amps at 220 Volts
Dimensions (approx.): 123" x 67"
Weight (approx.): 10,670 lbs

Notes

Equipped with (must be verified by buyer):
Tool Setter
Parts Catcher
Chip Conveyor
LNS QL Servo 3 "short type" Magazine Bar Loader
Live & Static Tooling Package
Misc Spindle Liners
ATS collet Chuck
10" Royal 3-Jaw Chuck
6" kitagawa on the sub
(5) x-axis live tool holders
(2) z-axis live tool holders
Y Axis
