Sold!
Buy one like this

I want to sell a machine like this

  • CNC Machine
  • Daewoo Doosan
  • 2000 SLYGL
  • Lathe - CNC
  • 3"
  • 2005
  • B Axis:
  • C Axis:
  • Y Axis:
  • Live Tooling:

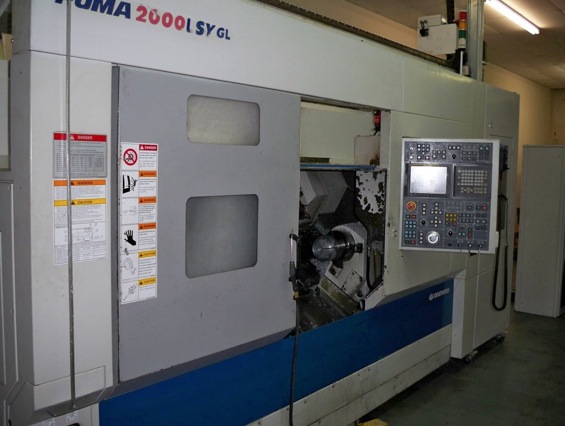

Daewoo Doosan 2000 SLYGL Lathe - CNC 3

Specifications

AC high torque spindle motor (Main) 20 HP
Spindle speed (Main) 45 - 5,000 RPM
Spindle motor (Sub) 10 HP
Spindle speed (Sub)60 - 6,000 rpm
X-axis travel 10.0"
Y-axis travel 4.0" (+/-2.0")
Z axis travel 32.6"
C axis minimum programmable angle (Main & Sub).001 degree
B axis travel (sub-spindle) 32.7"
Rotating tool RPM 50 - 5,000 RPM
Rotating tool spindle motor (10 min rating) 7.5 Hp
Tool holder type BMT 55
Maximum bar capacity 2.625"
Swing over bed 23.6"
Floor space (Length X Width MACHINE ONLY) 123" x 70"
Net weight (MACHINE ONLY) 3,450 lbs

Notes

Chip Conveyor
. Tool monitoring system - wear and breakage detection
. Automatic tool setter
. Solid box way construction
. One-piece 30^0 slant bed
. Solid box way construction
. Rulon`O 142 anti-friction mating way surfaces
. Base mounted tooling (BMT) system
. Sub spindle can be synchronized with main spindle
. 3 standard rotating tool holders (7 additional supplied)
. Electric torque limiter crash protection
