  • CNC Machine
  • Mazak
  • INTEGREX 200-II SY
  • Lathe - CNC
  • 2"
  • 2004
  • C Axis:
  • Y Axis:
  • Number of Axis: Yes
  • Live Tooling:

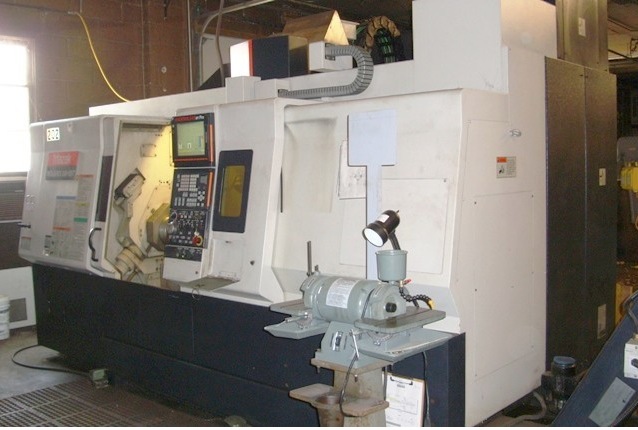

Mazak INTEGREX 200-II SY Lathe - CNC 2

Specifications

Max. Swing 26.5"
Max. Cutting Diameter (Chucking) 26"
Maximum Cutting Length 41.14"
Spindle Bore 2.99"
Spindle Nose a2-6
Max Bar Capacity 2.5"
Spindle Speeds 5000 Rpm
Axis Travel C - Axis .0001 Degree
X - Axis 22.8"
Z - Axis 41.14"
X2- Axis (Lower Turret) 5.91"
Z2- Axis (Lower Turret) 38.98"
Y - Axis 6.33"
B - Axis 225 Degrees
5 Degree Clamping
W - Axis (Second Spindle) 41.1"
Second Spindle Rpm 5000 Rpm
Spindle Nose a2-6
Spindle Bore (Second Spindle) 2.99"
Bar Capacity 2.5"
Second Spindle Min. Indexing .001 Degree
Second Spindle Travel 41.1"
Rapid Traverse Rates C - Axis 555 Rpm
X - Axis 1496 Ipm
Z - Axis 1496 Ipm
Y - Axis 1023 Ipm
B - Axis 555 Rpm
W - Axis 1181 Ipm
Min. Spindle Indexing (Main Spindle) .001 Degree
Tool Magazine Capacity 40 Atc
Lower Turret Positions 9 Tool Drum
Max. Tool Dia. Adj. 3.54"/4.92"
Max. Tool Length 11.81"
Rotary Tools Spindle Nose Km Style
Rotary Tool Spindle Speed 12,000 Rpm
Rotary Tool Motor 20 Hp
Maximum Tool Weight 22 Lbs.
Z - Axis Thrust 3124 Ft/Lbs.
Main Motor / Second Spindle 30 Hp/Ac 25 Hp

Notes

Nine Position Lower Turret
2Nd Turret Mazatrol
Multi Tap Transformer 230-460
Chip Conveyor (Side)
All Available Tooling
All Manuals
Mazatrol Fusion 640Mt-Pro Cnc Conversational Control
Eia/Iso Programming
Multi Tool Holder/Flash Tool
Direct Drawing Input
User Macro
600 Macro Variables
Eia Helical
Enhanced Y-Axis Face 1 and 2
Eia Helical Tapping
Rotary Axis Submicron
Rotary Axis Shape Comp.
Network Interface for Lan and Modem
213 Psi Thru Upper Turret
71 Psi Thru Lower Turret
C-Axis 0.0001 Degree 1St Spindle & 2Nd Spindle
B-Axis Index 5 Degree Coupling Clamp
Auto Chuck Jaw Open/Close
B-Axis 0.0001 Degree N/a Contouring
8" 3-Jaw Hydraulic Thru Hole Chucks Both Spindles
Hydraulic Pressure Interlock
Tool Eye Measurement for Upper and Lower Turret
Tool Life Monitoring
Background Tool Path Check
Milling Spindle Multi-Orient
Tool Eye Automatic Front and Second Spindle
Milling Spindle Sync. Tap
