  • CNC Machine
  • Mazak
  • INTEGREX 200-II SY
  • Lathe - CNC
  • 2"
  • 2004
  • C Axis:
  • Y Axis:
  • Number of Axis: Yes
  • Live Tooling:
Mazak INTEGREX 200-II SY Lathe - CNC 2

Specifications

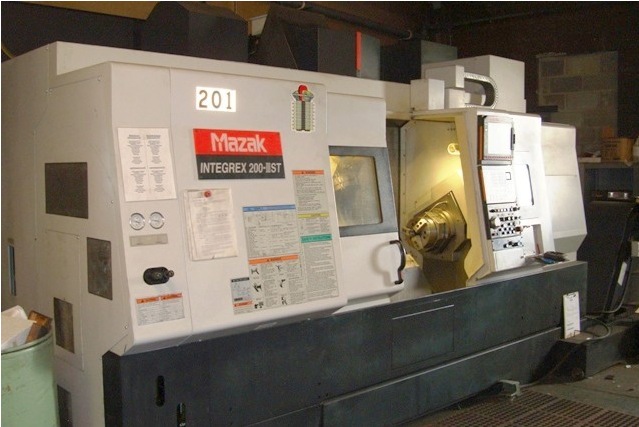

MAZAK INTEGREX 200IIIST CNC TURNING AND MILLING CENTER W/LOWER TURRET

Specifications
Max. Swing 26.5"
Max. Cutting Diameter (chucking) 26"
Maximum Cutting Length 41.14"
Spindle Bore 2.99"
Spindle Nose A2-6
Max Bar Capacity 2.5"
Spindle Speeds 5000 RPM
Axis Travel C - Axis .0001 degree
X - Axis 22.8"
Z - Axis 41.14"
X2- Axis (lower turret) 5.91"
Z2- Axis (lower turret) 38.98"
Y - Axis 6.33"
B - Axis 225 degrees
5 DEGREE CLAMPING
W - Axis (second spindle) 41.1"
Second Spindle RPM 5000 RPM
Spindle Nose A2-6
Spindle Bore (Second Spindle) 2.99"
Bar Capacity 2.5"
Second Spindle Min. Indexing .001 degree
Second Spindle Travel 41.1"
Rapid Traverse Rates C - Axis 555 RPM
X - Axis 1496 IPM
Z - Axis 1496 IPM
Y - Axis 1023 IPM
B - Axis 555 RPM
W - Axis 1181 IPM
Min. Spindle Indexing (main Spindle) .001 DEGREE
Tool Magazine Capacity 40 ATC
Lower Turret Positions 9 tool drum
Max. Tool Dia. Adj. 3.54"/4.92"
Max. Tool Length 11.81"
Rotary Tools Spindle Nose KM STYLE
Rotary Tool Spindle Speed 12,000 RPM
Rotary Tool Motor 20 HP
Maximum Tool Weight 22 LBS.
Z - Axis Thrust 3124 FT/LBS.
Main Motor / Second Spindle 30 HP/AC 25 HP

Notes


Mazatrol Fusion 640Mt-Pro Cnc Conversational Control
5-Xis Simultaneous Contouring
Eia Helical
Background Tool Path Check
Eia/Iso Programming
Multi Tool Holder/Flash Tool
Hobbing
Performance Cnc Optional Package
Y-Axis Control
Network Interface for Lan and Modem
213 Psi Thru Upper Turret
71 Psi Thru Lower Turret
C-Axis 0.0001 Degree 1St Spindle & 2Nd Spindle
B-Axis Index 5 Degree Coupling Clamp
Auto Chuck Jaw Open/Close
B-Axis 0.0001 Degree W/ Contouring
8" 3-Jaw Hydraulic Thru Hole Chucks Both Spindles
Hydraulic Pressure Interlock
Tool Eye Measurement for Upper and Lower Turret
Tool Life Monitoring
Direct Drawing Input
Milling Spindle Multi-Orient
Enhanced Y-Axis Face 1 and 2
Eia Helical Tapping
Rotary Axis Shape Comp.
Rotary Axis Sub-Micron
Ottomatics, Inc. June 16, 2010
John Otto Reference # 4295
4313 N. Smoke Ridge Ct.
Roswell, Ga 30075
Mitch Kinstler
Nine Position Lower Turret
2Nd Turret Mazatrol
Multi Tap Transformer 230-460
Chip Conveyor (Side)
All Manuals
