- CNC Machine

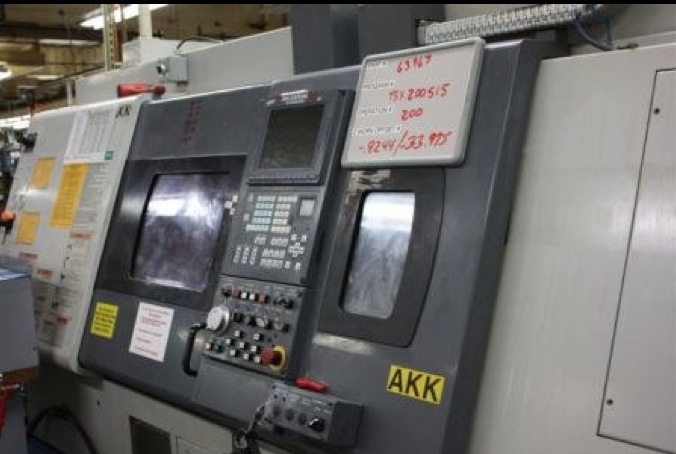

- Mazak
- INTEGREX 200-III SY
- Lathe - CNC
- 2"
- 2002
- B Axis:
- C Axis:
- Y Axis:
- Number of Axis: Yes
- Live Tooling:
Specifications
Maximum Swing........................... 21.25"Maximum Swing over Carriage............. 15.35" - 21.25"
Maximum Cutting Diameter: Chucking...... 21.25"
Maximum Cutting Length.................. 39.5"
OPTIONAL MAIN SPINDLE SPECIFICATIONS (L):
Optional Main Spindle Chuck Diameter... 10"
Spindle Nose........................... A2-8
Spindle Bore........................... 2.99"
Maximum Bar Work....................... 2.25"
Spindle Speed/Ranges................... 35-4000 RPM/1
Spindle Index (Programmable)........... 0.001 Degree
Spindle Horsepower (Cont/30 Mins)...... 20/30 HP (A.C.)_
Spindle Torque......................... 258.1 ft-lbs
SECOND SPINDLE SPECIFICATIONS (R)
Spindle Nose............................ A2-6
Spindle Bore............................ 2.04"
Maximum Bar Work........................ 1.69" Dia. x 24.4"
Spindle Speed/Ranges.................... 35 - 5000 RPM
Spindle Index (Programmable)............ 0.001 Degree
Spindle Horsepower (25% ED)............. 10 H.P. (A.C.)
Spindle Torque (25% ED)................. 57.8 ft-lbs
TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.......................... 1 Position, w/ATC
Tool Shank Height....................... 1.0"
Tool Size (Boring Bar Max. Dia.)........ 1.5"
Magazine Capacity....................... 40 Tools
Tool Selection Method................... Random
Tool to Tool ATC Time................... 1.3 Sec.
Max. Tool Dia. w/All Pockets Full....... 3.54"
Max. Tool Dia. w/Adjacent Pockets Empty. 4.72"
Max. Tool Length (From Gage-Line)....... 9.84"
Maximum Tool Weight..................... 15.4 lbs.
ATC Tool Shank.......................... Mazak KM63
Rotary Tool Spindle Speed/Ranges........ 15 - 10,000 RPM / 1
Rotary Tool Spindle Horsepower (20% ED). 20 H.P. (A.C.)
Rotary Tool Torque (20% ED)............ 88.2 ft-lbs
Maximum Face Mill....................... 3.94"
Maximum End Mill........................ 1.26"
Maximum Drill........................... 1.18"
Maximum Tap............................. 3/4 - 10 UNC
AXIS TRAVELS:
B-Axis.................................. 225 deg.(.001 deg. increments)
Y-Axis.................................. +/- 3.15"
X-Axis.................................. 20.87"
Z-Axis.................................. 42"
Second Headstock Z2-Axis................ 39.57"
AXIS RAPID RATES:
Y-Axis.................................. 590 IPM
X-Axis.................................. 1181 IPM
Z-Axis.................................. 1299 IPM
Second Headstock Z2-Axis................ 787 IPM
C-Axis.................................. 400 RPM
GENERAL SPECIFICATIONS:
Floor Space (WxL)....................... 82.95" x 150.3"
Machine Height.......................... 99.4"
Machine Weight.......................... 16,500 lbs.
Notes
Equipped With:
Mazatrol PC-Fusion-CNC 640MT Control
EIA/ISO Option Package (For Integrex with B Axis)
PCMCIA Interface (2-Slot)
3.5" Floppy Disk Drive (FDD)
2GB Hard Drive
Network Interface (For LAN & Modem)
Milling-Spindle Synchronous Tapping
B-Axis 0.001 Degree Incr. N/A Contouring
B-Axis Index 5 Degree (Coupling Clamp)
C-Axis 0.001 Degree Incr. (1st Spindle)
2nd Spindle Position 0.001 Deg w/o C-Axis
Y-Axis Control
10" Chuck (1st Spindle)
8" Chuck B-206 Second Spindle
1st Spindle Motor AC 30 HP
Second Spindle Motor 10HP
Second Spindle speed 5000 RPM
40 Tool Magazine
Rotary-Tool Spindle Speed 10,000 RPM
Coolant Through Milling Head
Automatic Tool Eye
Operator Door Interlock with Lock-Switch
Hydraulic Pressure Interlock
Spindle Bore Dia. 76mm (2.99") for Main Spindle
Chip Conveyor Side Disposal (Hinge Type)
213 P'SI Thru Coolant / 2.4kg Flood Simul-Flowable
Overload Detection System
Automatic Parts Catcher
Parts Conveyor
Tool Life Monitoring
Tool Wear Compensation
Background Tool Path Check
