  • CNC Machine
  • Kitako

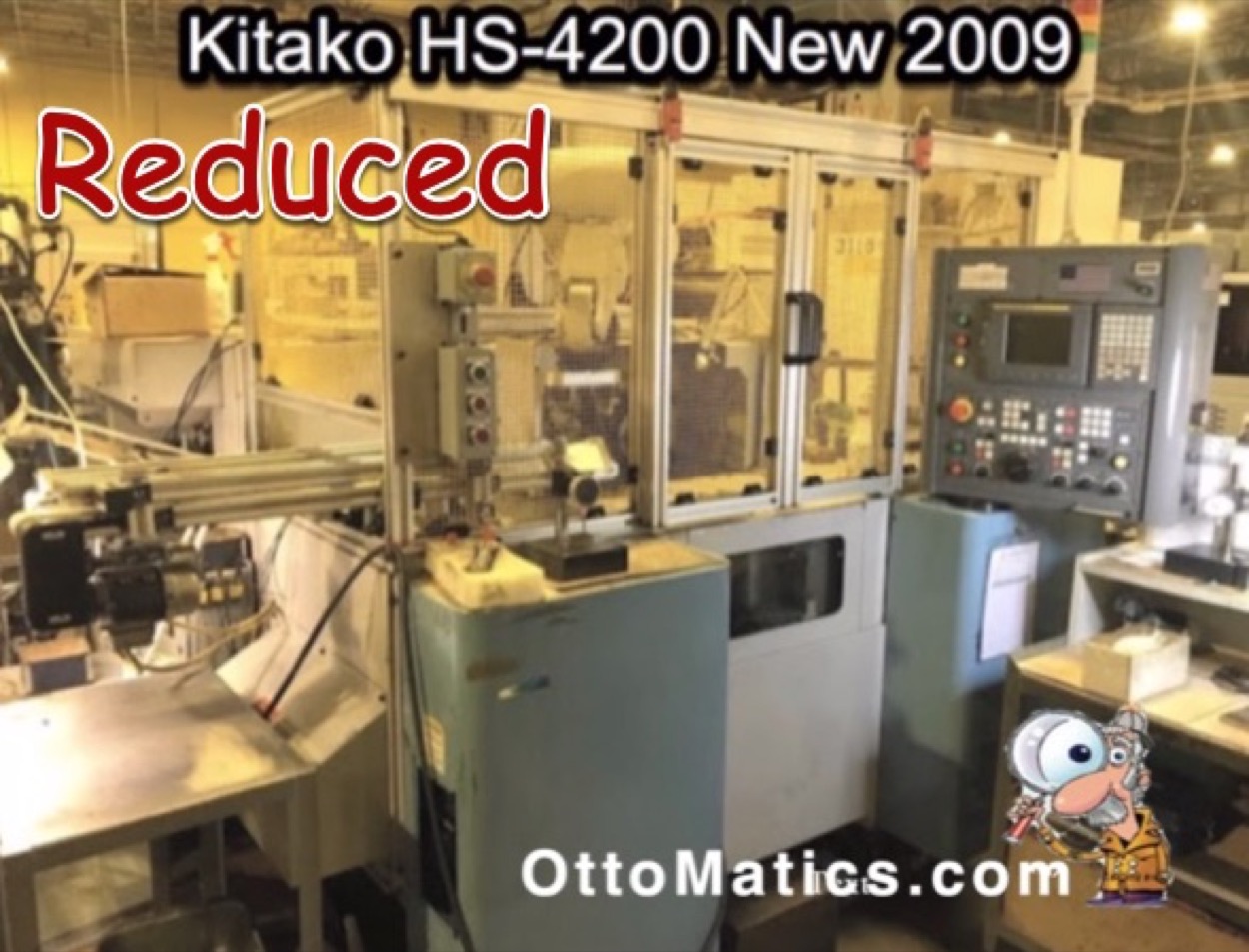

  • Kitako HS-4200n
  • Lathe - CNC
  • Chucker
  • 2009

Specifications

Chuck Size 8"
Number of Spindles 4
Spindle Nose A2-6
Spindle Speed Range 45-4500 RPM
Carrier Index 1.5 Seconds / 180
X Axis Travel 6.3"
Z Axis Travel 9.8"
Rapid Traverse Rate X Axis 945 IPM
Rapid Traverse Rate Y Axis 1181 IPM
Maximum Turning Diameter 7.8"
Maximum Turning Length 4"
Main Motor 20 HP x 2
Turret 8 Station x 2

Notes

Hydraulic Chuck (8) X 4
Mitsubishi Loading Robot
Totally Enclosed Splash Guards
Door Interlock
Hydraulic Circuit Alarm Indicator
Production Counter
Maintenance Counter
Tool Counter
Coolant Equipment
Chip Conveyer
Foot Switch
Alarm Message Function
Lubrication Circuit Alarm Indicator
Servo Motor Driven Carrier (2 Second Index Time)
Tool Holder for 8 Station Drum
